NPC平滑运动

NPC被赋予一组路线比如List，NPC按照路线行进。当遇到转角时，如果直接改变朝向，NPC会显得过于程序化，必然是不可取的。该篇博客尝试了两种方法，分别是“转角圆弧”和“惰性转向”

1 转角圆弧

在转角时，根据预留量（可以设定与速度线性相关）提前脱离路径转弯，转弯的圆弧是两组边的内切圆。此时NPC的转弯角速度可以根据运动速度、预留量，转角的角度，精确求得。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
using System.Collections.Generic;
using UnityEngine;

public class ArcMove : MonoBehaviour
{
    public float TurnTriggerDistance = 5f;  // 预先转向保留距离
    public float MoveSpeed = 20f;           // 匀速朝向前运动

    private float _angularSpeed = 0f;       // 本次转向的转向速度
    private float _remainingTurnTime = 0f;  // 本次转向的转向时间
    private int _currentNodeIndex = 0;

    private List<Vector3> _route = new()
    {
        new Vector3(10,0,-10),
        new Vector3(-10,0,-10),
        new Vector3(10,0, 0),
        new Vector3(10,0,10),
        new Vector3(-10,0,10),
    };

    private void Start() => ResetState();

    void Update()
    {
        // ECS里的控制系统
        var curPos = transform.position;
        if (_remainingTurnTime <= 0 && _currentNodeIndex == _route.Count - 2)
        {
            var curPoint = _route[_currentNodeIndex];
            var arrivePoint = _route[_currentNodeIndex + 1];
            if (Vector3.Dot(arrivePoint - curPoint, arrivePoint - curPos) < 0)
                ResetState();
        }
        if (_remainingTurnTime > 0)
        {
            _remainingTurnTime -= Time.deltaTime;
            if (_remainingTurnTime <= 0) _angularSpeed = 0;
        }
        else
        {
            var haveNextPoint = _currentNodeIndex + 1 < _route.Count;
            var haveNextNextPoint = _currentNodeIndex + 2 < _route.Count;
            var handled = false;
            if (haveNextNextPoint)
            {
                var curPoint = _route[_currentNodeIndex];
                var nextPoint = _route[_currentNodeIndex + 1];
                var nextNextPoint = _route[_currentNodeIndex + 2];
                var inVector = nextPoint - curPoint;
                var outVector = nextNextPoint - nextPoint;
                var clampTurnTriggerDistance = Mathf.Min(TurnTriggerDistance, Mathf.Min(inVector.magnitude, outVector.magnitude) / 2);
                var nowRemainDist = (curPos - nextPoint).magnitude;
                if (nowRemainDist <= clampTurnTriggerDistance)
                {
                    ++_currentNodeIndex;
                    handled = true;
                    // 脱离
                    var angle = Vector3.SignedAngle(inVector.normalized, outVector.normalized, Vector3.up);
                    var absoluteAngle = Mathf.Abs(angle);
                    if (absoluteAngle < 1f) return; // 角度太小，Tan会很大，安全起见，直接当直线跑
                    var inCircleRadius = nowRemainDist / Mathf.Tan(absoluteAngle * Mathf.Deg2Rad / 2);
                    var arcLength = 2 * Mathf.PI * inCircleRadius * absoluteAngle / 360;
                    _remainingTurnTime = arcLength / MoveSpeed;
                    _angularSpeed = angle / _remainingTurnTime;
                }
            }
            if (haveNextPoint && !handled)
            {
                var curDir = transform.rotation * Vector3.forward;
                var targetDir = _route[_currentNodeIndex + 1] - curPos;
                var diffAngle = Vector3.SignedAngle(curDir.normalized, targetDir.normalized, Vector3.up);
                _angularSpeed = diffAngle * MoveSpeed; // 朝向收敛与速度正相关
            }
        }

        // ECS里的Movement系统
        transform.rotation *= Quaternion.Euler(0, _angularSpeed * Time.deltaTime, 0);
        transform.position = transform.position + MoveSpeed * Time.deltaTime * transform.forward;
    }

    private void ResetState()
    {
        _currentNodeIndex = 0;
        transform.SetPositionAndRotation(_route[_currentNodeIndex], Quaternion.LookRotation(_route[1] - _route[0]));
    }
}

2 惰性转向

NPC如果只有起点和终点，当抵达终点后再赋予他新的终点。简单描述：NPC随机选择路，不走回头路。
该方法的措施是：每一刻都会计算NPC与终点的目标方向、与当前边的回归方向，得出最终的期望方向，通过NPC朝向和期望方向，最终算出此时的转向角。如果希望NPC快速回归到边，可以增大回归方向。如果希望NPC快速完成转向，可以增大最终求得的转向角。

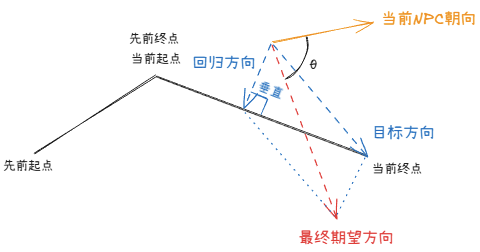

任意时刻NPC转向角获取示意图

任意时刻NPC转向角获取示意图

1
2
3
4
5
6
7
8
9
10
11
12
var curPos = transform.Position;
var curDir = transform.Rotation * Vector3.forward;

var pathDir = (data.PrevPos - data.NextPos).normalized;   // 路径方向: Prev -> Next
var toNext = curPos - data.NextPos;                       // 目标点指向当前位置的向量
var projectedLength  = Vector3.Dot(pathDir, toNext);      // 目标点指向当前位置的向量在路径方向上的投影长度
var projectedOnPath = pathDir * projectedLength;          // 路径方向的投影向量
var lateralOffset = projectedOnPath - toNext;             // 偏离路径的横向偏移

var desiredDir = data.NextPos - curPos + lateralOffset * _PathRecoverStrength;
var diffAngle = Vector3.SignedAngle(curDir.normalized, desiredDir.normalized, Vector3.up);
data.AngularSpeed = diffAngle * data.MoveSpeed;           // 朝向收敛与速度正相关

代码如上，每帧会按照转向角进行方向修正。
